Windchest Releathering — Zion Reformed Church, Sable Creek

A focused windchest releathering project — pouch and valve leather replaced throughout on an otherwise sound tracker organ showing early cyphers and slow repetition, no tonal or cosmetic work scoped.

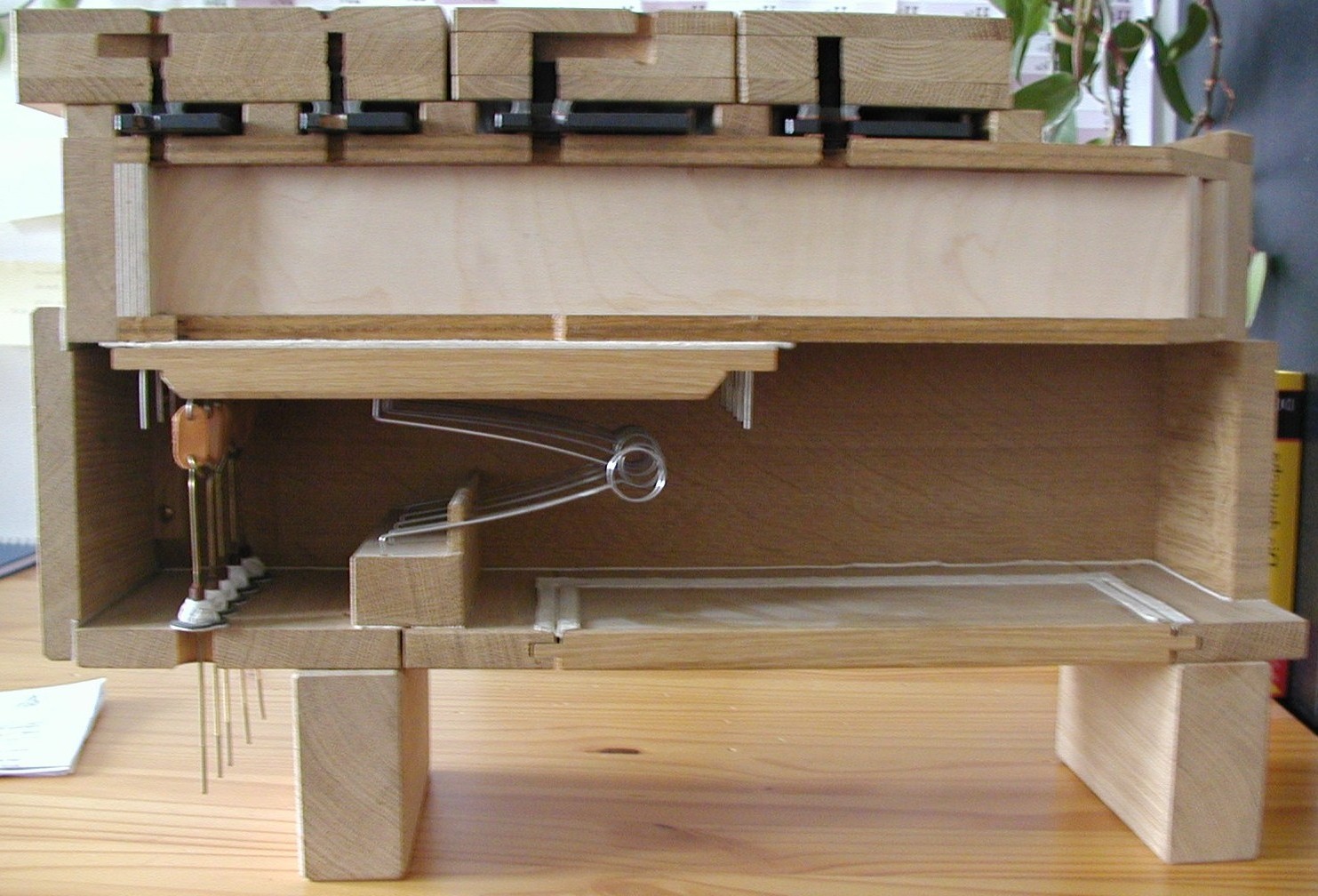

Cutaway model of a pipe organ windchest showing the internal pallet and channel mechanism

The project

The organ was tonally and mechanically sound overall, but the church's organist had noticed several notes beginning to cypher intermittently (sounding without a key being pressed) and a general slowing in note repetition speed — both classic symptoms of leather nearing the end of its service life rather than a design or voicing problem. Every windchest pouch and primary valve was releathered using leather matched in weight and finish to the original specification, without disturbing pipework, casework, or the tracker action itself. Scope was deliberately limited to exactly the failing component, at the church's request, to keep the project within a modest maintenance budget.

Leather life on a windchest of this type typically runs 25-40 years depending on climate control consistency; this instrument’s original leather had lasted just over 30 years before symptoms appeared.

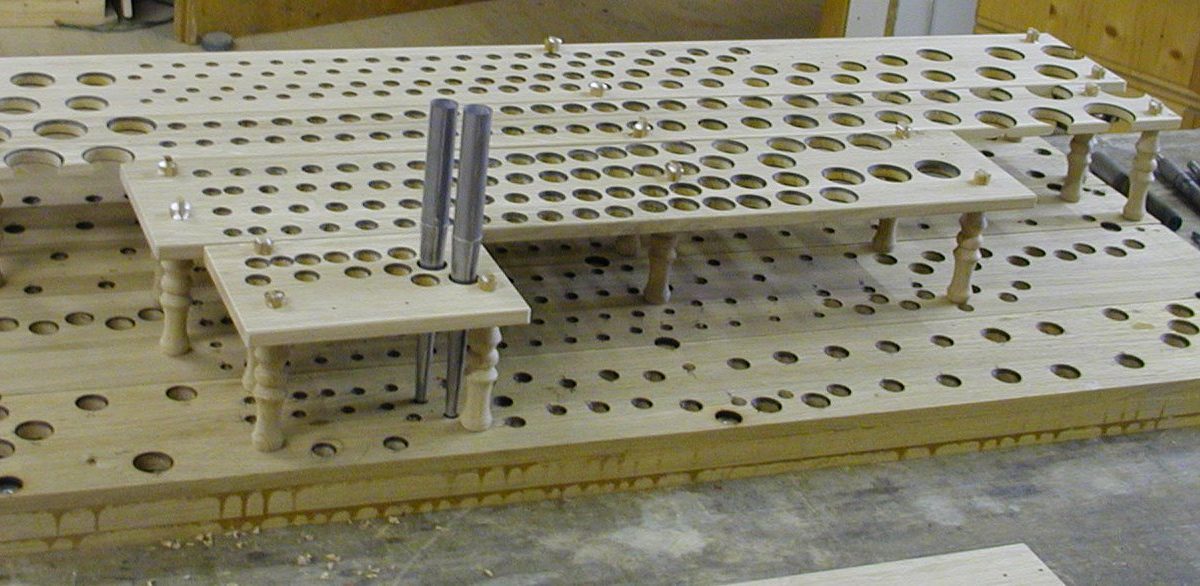

A pre-assembled pipe toe-board on the bench in an organ-building workshop
